On gridding spatial data

Lets say we have some spatial observations and wanted to calculate some summary metric (count, sum, mean, variance, …) based on specified spacial gridding of the raw data.

Preamble

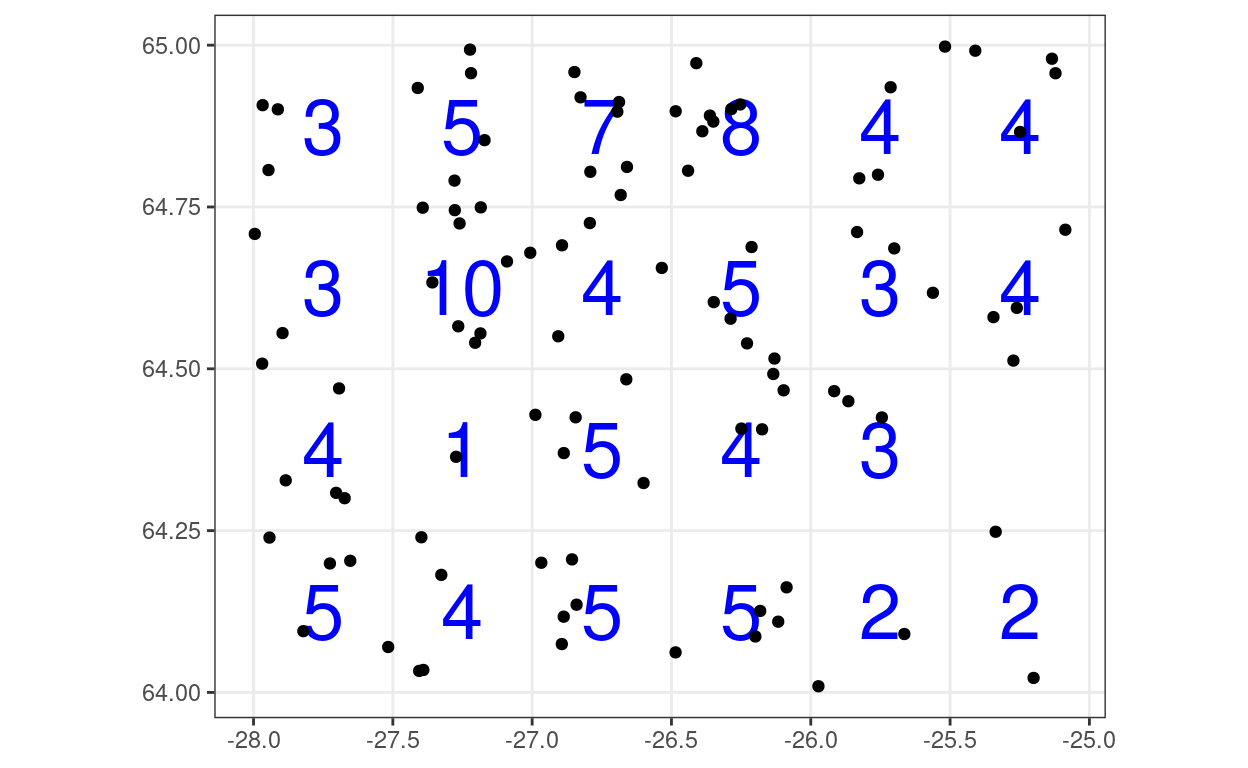

Lets say we have some spatial observations and wanted to calculate some summary metric (count, sum, mean, variance, …) based on specified spacial gridding of the raw data. As an example, one could have 100 observations on a limited spatial scale of some 3 degrees longitude and 1 latitude and wanted to calculate the number of observations that fall within a 0.5 degree longitude and 0.25 degree latitude as depicted in the figure below (blue labels are the counts statistics of the observation within each grid):

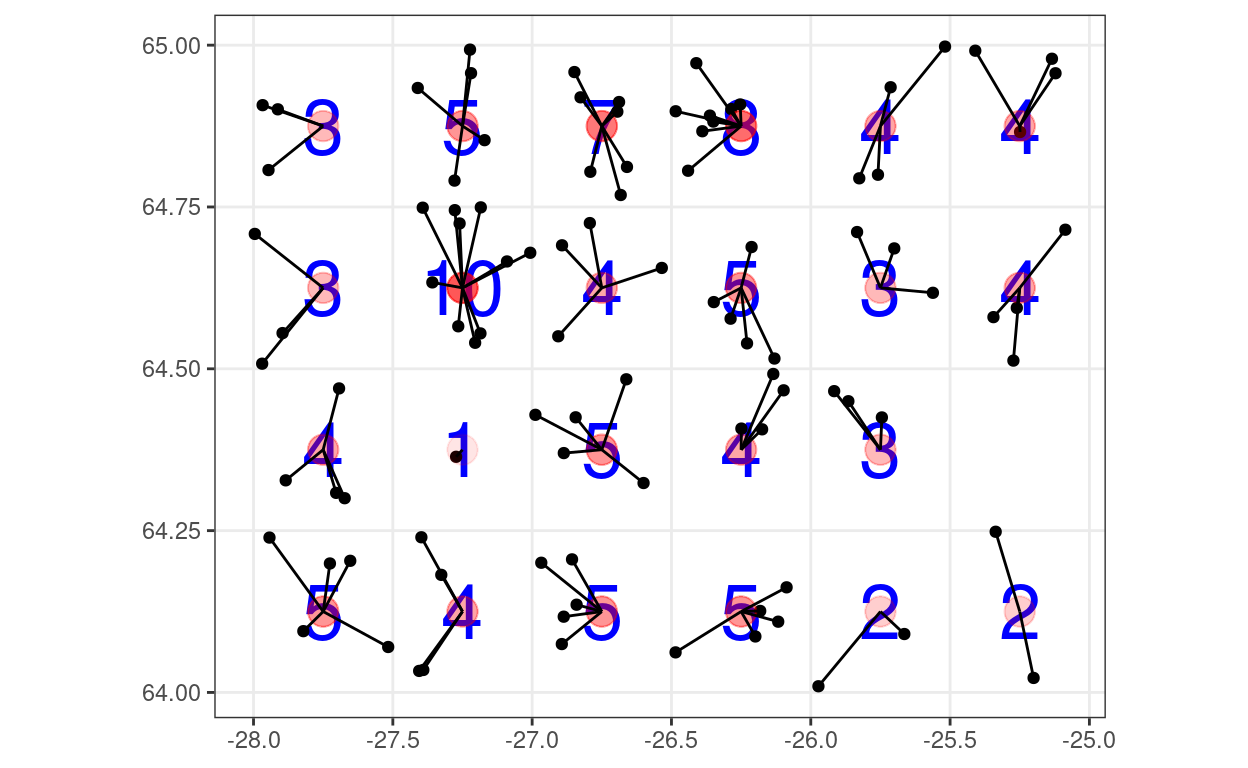

In order to solve this problem one needs first to transform each spatial point to a central point based on user’s defined xy-resolution. I.e. we want to transform the observed spatial x and y value (the black points) to a single spatial point (the pink points) as depicted visually in this graph:

Now, solving this problem has been done myriads of times. What is documented here an example of a code flow within the tidyverse environment.

The code

The raw data above were generated as follows:

set.seed(314) # for the love of pi
d <-
  tibble(lon =    runif(n = 1e2, min = -28, max = -25),
         lat =    runif(n = 1e2, min =  64, max =  65),
         effort = rnorm(n = 1e2, mean = 1000, sd = 200))

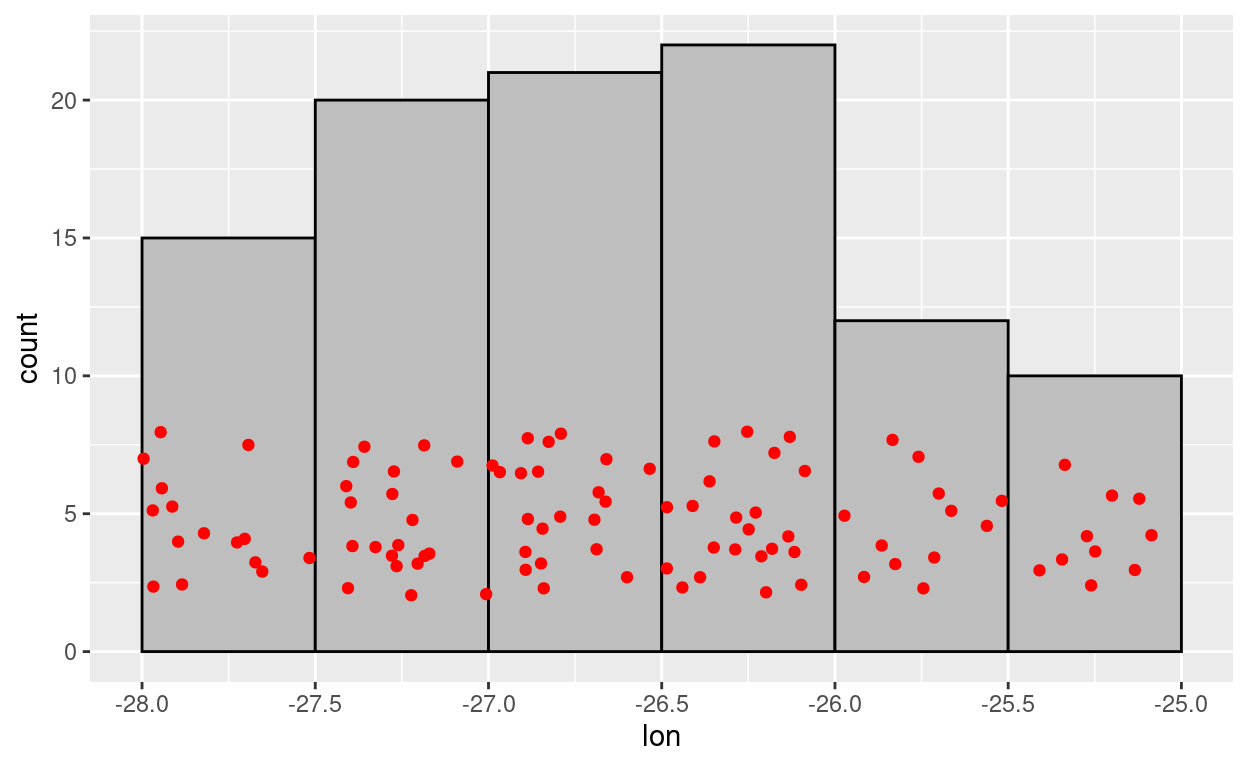

Lets break the problem up by solving just one dimension (e.g. the longitude). The challenge is to assign each point to a bin and count the number of incidences that a point falls within the interval. Sort of like what happens when we generate a histogram:

d %>%
  ggplot() +
  geom_histogram(aes(lon), breaks = seq(-28, -25, by = 0.5),
                 fill = "grey", colour = "black") +
  geom_jitter(aes(lon, y = 5), width = 0, height = 3, colour = "red") +
  scale_x_continuous(breaks = seq(-28, -25, by = 0.5))

The steps are:

1. Create some pretty breaks, given the data and the specified resolution.
2. Find break interval that each data point belongs to.
3. Calculate the midpoint on the interval (here the longitude) that the each data-point belongs to.

Lets generate the horizontal vector (x) and the resolution:

x <- d$lon
dx <- 0.5

1. Creating the breaks, using floor and ceiling of the minimum and maximum value in the data to ensure that one has some “pretty” intervals:

brks <- seq(floor(min(x)), ceiling(max(x)), dx)
brks

[1] -28.0 -27.5 -27.0 -26.5 -26.0 -25.5 -25.0

Here we have created a vector that contains the “boundaries” of the bins we want for the horizontal data. The length of the vector is 7 but the bins (intervals) are 6.

2. To find the interval position that a point belongs to we can use the findInterval function:

# https://github.com/hadley/adv-r/blob/master/extras/cpp/find-interval.cpp
# By using the argument all.inside = TRUE we assign the point to the lower break/interval position.
ints <- findInterval(x, brks, all.inside = TRUE)
ints

  [1] 1 2 5 2 2 2 2 3 4 5 3 1 2 2 4 3 5 4 1 3 4 3 4 2 1 4 2 1 2 4 2 4
 [33] 1 3 3 1 6 6 4 4 3 5 3 6 5 5 4 2 1 2 5 4 4 5 2 3 4 6 3 2 3 5 2 3
 [65] 1 3 4 1 1 3 1 4 6 4 5 4 4 6 1 1 3 3 6 2 3 2 6 5 2 1 4 3 4 4 6 6
 [97] 5 3 3 2

Here we have a vector that states that the 1st observation belongs to the 1st bin, 2nd to the 2nd bin, 3rd to the 5th bin and so on. We can easily count the number of values within each bin by:

table(ints)

ints
 1  2  3  4  5  6
15 20 21 22 12 10

The values are equivalent to the counts that are the values on the y-axis in the histogram above. As it stands the intervals/bins are in relative terms, i.e. they are not scaled to the original data (in this case longitude). This we solve in the third step.

3. The midpoint that a data point belongs to is just the average of the lower and upper boundary of the breaks that a point belongs to:

x <- (brks[ints] + brks[ints + 1]) / 2
x

  [1] -27.75 -27.25 -25.75 -27.25 -27.25 -27.25 -27.25 -26.75 -26.25
 [10] -25.75 -26.75 -27.75 -27.25 -27.25 -26.25 -26.75 -25.75 -26.25
 [19] -27.75 -26.75 -26.25 -26.75 -26.25 -27.25 -27.75 -26.25 -27.25
 [28] -27.75 -27.25 -26.25 -27.25 -26.25 -27.75 -26.75 -26.75 -27.75
 [37] -25.25 -25.25 -26.25 -26.25 -26.75 -25.75 -26.75 -25.25 -25.75
 [46] -25.75 -26.25 -27.25 -27.75 -27.25 -25.75 -26.25 -26.25 -25.75
 [55] -27.25 -26.75 -26.25 -25.25 -26.75 -27.25 -26.75 -25.75 -27.25
 [64] -26.75 -27.75 -26.75 -26.25 -27.75 -27.75 -26.75 -27.75 -26.25
 [73] -25.25 -26.25 -25.75 -26.25 -26.25 -25.25 -27.75 -27.75 -26.75
 [82] -26.75 -25.25 -27.25 -26.75 -27.25 -25.25 -25.75 -27.25 -27.75
 [91] -26.25 -26.75 -26.25 -26.25 -25.25 -25.25 -25.75 -26.75 -26.75
[100] -27.25

Now since we are going to use this repeatedly in a workflow we may as well wrap the above three lines into a convenience function:

grade <- function(x, dx) {
  brks <- seq(floor(min(x)), ceiling(max(x)),dx)
  ints <- findInterval(x, brks, all.inside = TRUE)
  x <- (brks[ints] + brks[ints + 1]) / 2
  return(x)
}

To put the function into use we simply do:

d %>%
  mutate(glon = grade(lon, dx = dx)) %>%
  group_by(glon) %>%
  summarise(n = n()) %>%
  knitr::kable()

glon	n
-27.75	15
-27.25	20
-26.75	21
-26.25	22
-25.75	12
-25.25	10

We have the same count statistics as we got from the table call above, only now we have related the counts to a value of our data, rather than to a seqential bin-value.

We can use the grade-function to assign both the longitudinal and latitudinal observations to a specified xy-grid within in a single mutation-call:

d <-
  d %>%
  mutate(glon = grade(lon, dx = 0.50),
         glat = grade(lat, dx = 0.25))
d %>% slice(1:10) %>%  knitr::kable()

lon	lat	effort	glon	glat
-27.70350	64.30833	971.2615	-27.75	64.375
-27.18557	64.55467	1290.4014	-27.25	64.625
-25.70042	64.68599	860.2981	-25.75	64.625
-27.32607	64.18164	780.2983	-27.25	64.125
-27.39267	64.74890	1033.2841	-27.25	64.625
-27.09022	64.66584	965.6144	-27.25	64.625
-27.27755	64.74509	850.0575	-27.25	64.625
-26.88663	64.11706	576.9763	-26.75	64.125
-26.34812	64.60306	965.1902	-26.25	64.625
-25.75884	64.79979	1112.7509	-25.75	64.875

One obtains a dataframe with the same amount of observations as the original, we have just added two more variables. One could now proceed with creating some summary statistics based on the gridded xy-values:

df <-
  d %>%
  group_by(glon, glat) %>%
  summarise(n = n(),
            m = mean(effort),
            s = sum(effort),
            sd = sd(effort))
# etc.
df %>% ungroup() %>% slice(1:10) %>% knitr::kable()

glon	glat	n	m	s	sd
-27.75	64.125	5	1022.5096	5112.5478	229.6725
-27.75	64.375	4	1137.8015	4551.2061	114.0223
-27.75	64.625	3	891.8389	2675.5167	224.4080
-27.75	64.875	3	1027.4963	3082.4889	116.3074
-27.25	64.125	4	984.9683	3939.8731	136.6450
-27.25	64.375	1	999.6678	999.6678	NA
-27.25	64.625	10	998.4746	9984.7459	170.6212
-27.25	64.875	5	932.1593	4660.7964	207.5640
-26.75	64.125	5	934.0566	4670.2830	203.0497
-26.75	64.375	5	984.8071	4924.0354	115.7967

So we have condensed the original 100 observations to a dataset that contains 23 observations (6 bins in the x-dimension times 4 in the y-dimension, minus one “missing” grid dimension). And now one is ready to plot any statistics of interest, here we just choose to display the counts by colour codes using the ggplot raster function adding the original data as well:

df %>%
  ungroup() %>%
  ggplot(aes(glon, glat)) +
  geom_raster(aes(fill = s)) +
  geom_point(data = d, aes(lon, lat), colour = "white", size = 0.5) +
  geom_segment(data = d, aes(xend = lon, yend = lat), colour = "white") +
  geom_text(aes(label = n), colour = "blue") +
  scale_fill_viridis_c(option = "B", direction = -1) +
  scale_x_continuous(breaks = seq(-28, -25, by = 0.5)) +
  coord_quickmap() +
  labs(x = NULL, y = NULL, fill = "Effort")

If one is interested in displaying other type of statistics, one could replace the variable name in the fill-argument in the geom_raster call above.

A case examples

Here we take an example of 618454 records of geoposition from activities of bottom trawlers operating in waters northwest of Iceland. The position is automatically recorded every 5 minutes or so and the raw data look something like this:

vms %>% slice(1:10) %>% knitr::kable()

id	date	lon	lat
-834837	2016-12-13 03:51:45	-24.56281	66.87381
-834837	2016-12-13 03:56:04	-24.55106	66.87589
-834837	2016-12-13 04:02:04	-24.53802	66.87763
-834837	2016-12-13 04:06:14	-24.52499	66.87937
-834837	2016-12-13 04:12:14	-24.51141	66.88040
-834837	2016-12-13 04:16:24	-24.49784	66.88143
-834837	2016-12-13 04:22:24	-24.48393	66.88092
-834837	2016-12-13 04:26:54	-24.47002	66.88041
-834837	2016-12-13 04:32:54	-24.46468	66.88093
-834837	2016-12-13 04:37:04	-24.45934	66.88145

The id is a reference to individual tows (there are 16580 tows in the database).

Now lets use the grade convenience function above and calculate the number of observations (here effort) at a xy-resolution of 0.01 x 0.005 degrees:

dx <- 0.01
vms <-
  vms %>%
  mutate(lon = grade(lon, dx),
         lat = grade(lat, dx/2)) %>%
  group_by(lon, lat) %>%
  summarise(n = n())

We now have created a summary statistic containing 66303 records that looks something like this:

# code just to display first 10 records:
vms %>% ungroup() %>% slice(1:10) %>% knitr::kable()

lon	lat	n
-26.995	65.8375	1
-26.995	65.8475	2
-26.995	65.8525	2
-26.995	65.8575	2
-26.995	65.8625	2
-26.995	65.8725	2
-26.995	65.8875	2
-26.995	65.8925	4
-26.995	65.9025	2
-26.995	65.9075	6

Here the lon and the lat refer to the center positioning within the specified xy-grid and n refers to the sum of the numbers of trawling operation recorded within that grid (effort).

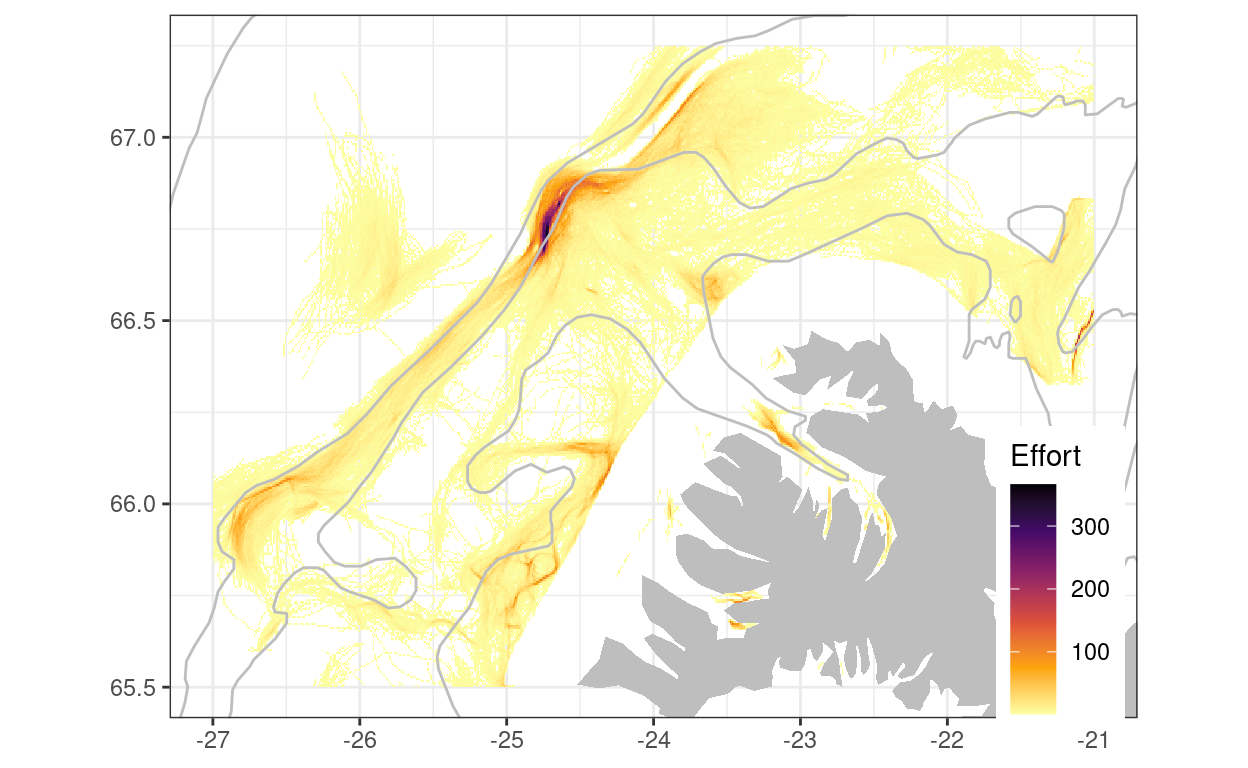

Now we let ggplot2 do the rest, just adding an anonymous “island” and 100, 200 and 400 meter depth contour as a reference:

vms %>%
  ggplot() +
  theme_bw() +
  geom_raster(aes(lon, lat, fill = n)) +
  geom_polygon(data = geo::island,
               aes(lon, lat, group = NULL), fill = "grey") +
  geom_path(data = geo::gbdypi.400,
            aes(lon, lat, group = NULL), colour = "grey") +
  geom_path(data = geo::gbdypi.200,
            aes(lon, lat, group = NULL), colour = "grey") +
  geom_path(data = geo::gbdypi.100,
            aes(lon, lat, group = NULL), colour = "grey") +
  scale_fill_viridis_c(option = "B", direction = -1) +
  scale_x_continuous(breaks = seq(-27, -21, by = 1)) +
  scale_y_continuous(breaks = seq(65.5, 67.5, by = 0.5)) +
  coord_quickmap(xlim = range(vms$lon), ylim = range(vms$lat)) +
  labs(x = NULL, y = NULL, fill = "Effort") +
  theme(legend.position = c(0.92, 0.2))
